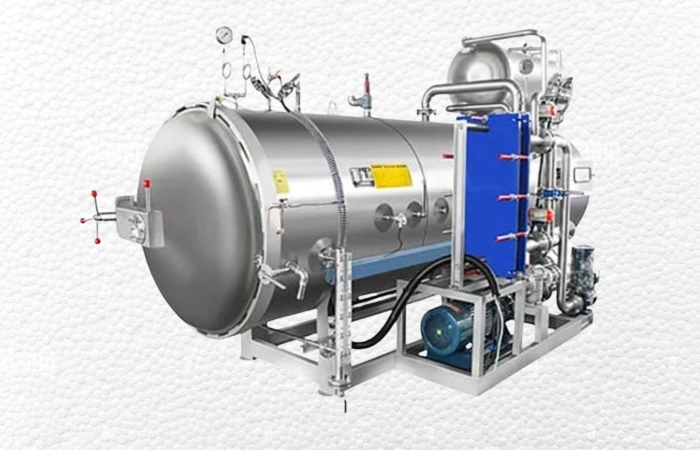

Automatic Water Spray Retorts
Durva Automation's Automatic Water Spray Retorts offer precise and efficient sterilization for packaged foods. Our advanced systems ensure uniform heat distribution, reducing processing times and preserving product quality. Designed for reliability and ease of use, these retorts minimize energy consumption and maximize throughput. Trust Durva Automation for superior food processing technology, enhancing safety and extending shelf life for a wide range of products.
| Model | Dia. (mm) | Effective L.(mm) | Overall L.(mm) | Overall W.(mm) | Overall H.(mm) | Volume (m³) | Steam consumption (kg) | Power (kW) | Trays (set) | Design temp. (°C) | Design P (MPa) | Test P (MPa) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DURVA-DA/SY700-1P | 700 | 1200 | 3050 | 1300 | 2400 | 0.55 | 25 | 3.6 | 1 | 147 | 0.35 | 0.44 |
| DURVA-DA/SY900-2P | 900 | 1800 | 3500 | 1800 | 2700 | 1.32 | 45 | 5.5 | 2 | 147 | 0.35 | 0.44 |
| DURVA-DA/SY1000-3P | 1000 | 2400 | 4350 | 1900 | 2900 | 2.12 | 95 | 8 | 3 | 147 | 0.35 | 0.44 |
| DURVA-DA/SY1200-3P | 1200 | 3000 | 5150 | 2150 | 3600 | 3.45 | 165 | 14 | 3 | 147 | 0.35 | 0.44 |
| DURVA-DA/SY1200-4P | 1200 | 3600 | 5750 | 2150 | 3600 | 4.46 | 195 | 14 | 4 | 147 | 0.35 | 0.44 |
| DURVA-DA/SY1200-5P | 1200 | 4000 | 6150 | 2150 | 3600 | 5.48 | 215 | 14 | 5 | 147 | 0.35 | 0.44 |
| DURVA-DA/SY1500-4P | 1500 | 4000 | 6350 | 2500 | 4300 | 7.82 | 335 | 31 | 4 | 147 | 0.35 | 0.44 |
